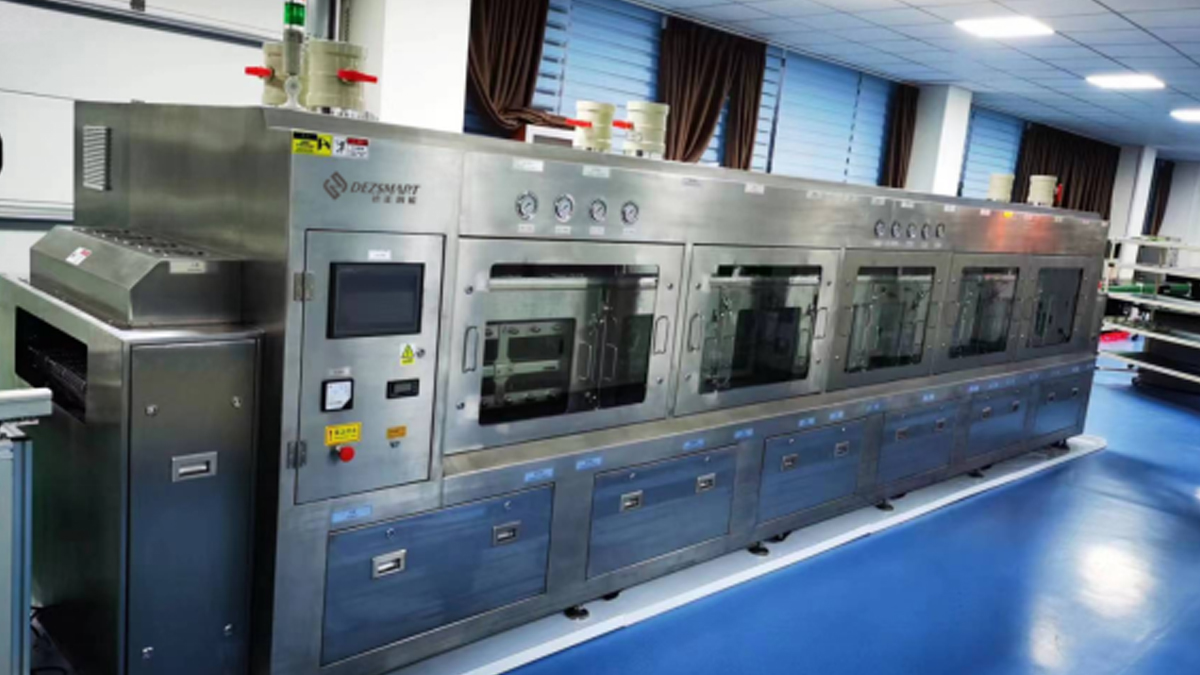

The DEZ-C1520 is an inline water-based PCBA cleaning machine for continuous cleaning after reflow, wave or selective soldering. PCBAs pass through chemical pre-washing, circulating spray washing, staged DI-water rinsing, air-knife separation and three-stage air drying.
The machine processes PCBAs up to 500 mm wide, 400 mm long and 80 mm high, with a maximum product weight of 10 kg. Conveyor speed is adjustable from 10 to 1500 mm/min to match the board structure, contamination level and required cleaning time.
Chemical Spray Washing | Staged DI-Water Rinsing | Three-Stage Air Drying
The DEZ-C1520 integrates washing, rinsing and drying into one continuous conveyor process. It is designed for production where PCBAs must be cleaned without loading and unloading separate batch chambers.

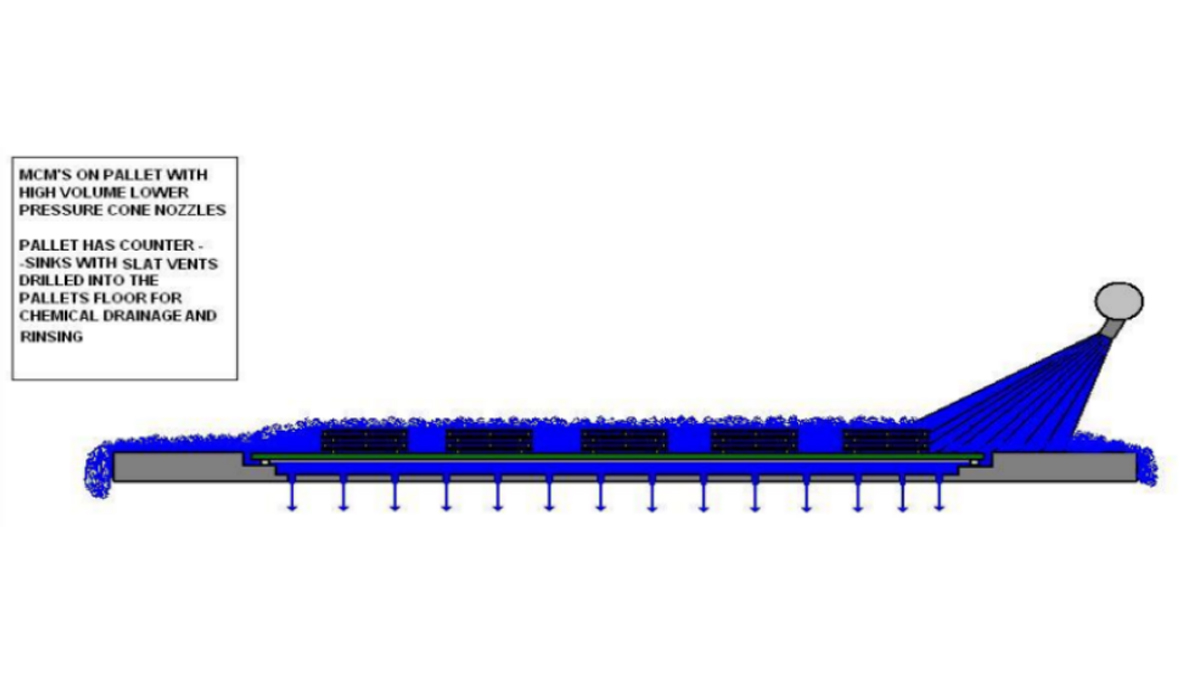

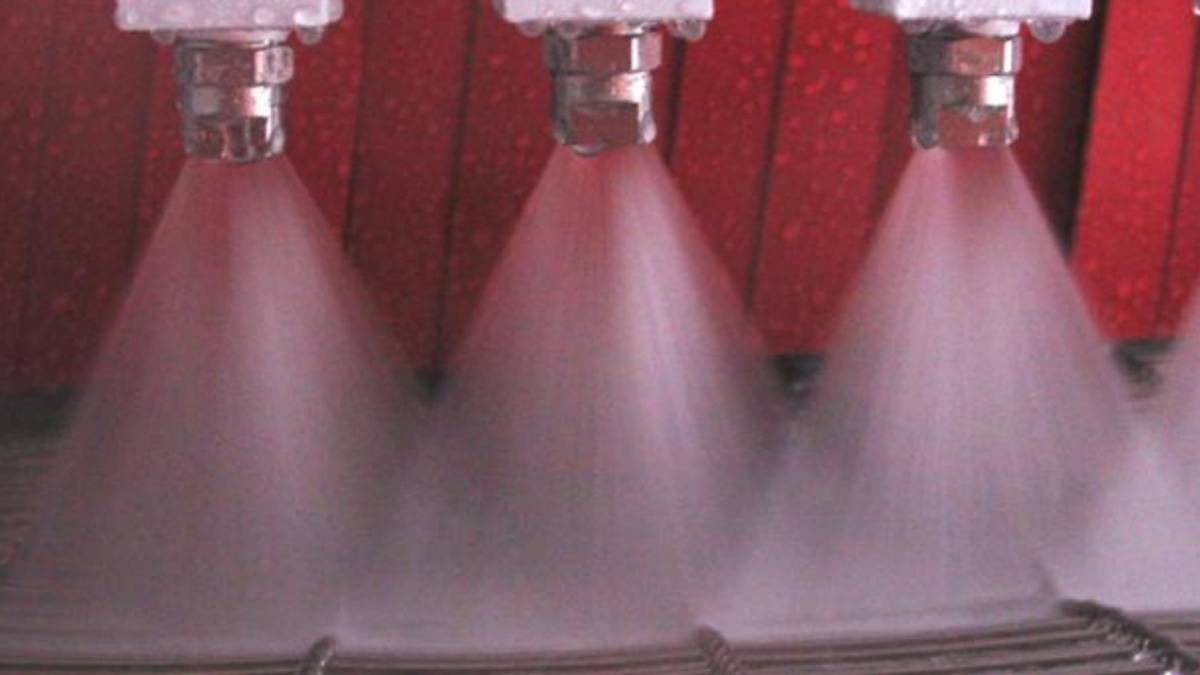

Upper and lower spray systems direct the cleaning liquid and DI water towards both sides of the assembly. The actual cleaning result depends on flux chemistry, component layout, spray access and the cleanliness requirement established for the product.
The machine can be positioned after reflow, wave or selective soldering and before cleanliness testing, conformal coating, inspection or final assembly.
| Parameter | DEZ-C1520 |
|---|---|
| Machine type | Inline water-based PCBA cleaning machine |
| Cleaning process | Chemical washing, DI-water rinsing and air drying |
| Machine dimensions | L5210 × W1760 × H1680 mm |
| Machine weight | Approximately 2200 kg |
| Maximum PCBA dimensions | W500 × L400 × H80 mm |
| Maximum product weight | 10 kg |
| Mesh-belt width | 600 mm, customisable |
| Conveyor speed | 10–1500 mm/min, adjustable |
| Machine-body material | SUS304 stainless steel |
| Conveyor and basket material | SUS316 stainless steel |
| Control system | PLC and 10-inch touchscreen |
| Installed power | Approximately 100 kW |
| Operating power | Approximately 65–85 kW |
| Power supply | Three-phase 380 VAC, five-wire |
| Chemical-liquid consumption | 1.5–2.5 L/h |
| DI-water consumption | 5–10 L/min |
| DI-water inlet requirement | 1.0 m³/h |
| DI-water quality requirement | Above 15 MΩ |
| Chemical-wash spray pressure | 0–0.6 MPa, adjustable |
| DI-rinse spray pressure | 0–0.6 MPa, adjustable |
| Chemical-tank temperature | 25–75°C |
| Drying configuration | One cold-air stage and two hot-air stages |
| Air-knife adjustment | Height and angle adjustable |
| Required exhaust airflow | 1200 CFM |
| Noise | Below 80 dB |
| Secondary filtration | 100 μm |
| Nozzle connection | Quick-connect design |
| Optional configuration | Custom conveyor width and SUS316 product baskets with side, front or rear restraints can be developed according to the workpiece dimensions. |
It is designed to remove compatible flux residue, dissolved ionic contamination, cleaning-agent residue and other post-solder process contamination from assembled circuit boards.
It is an inline conveyor machine. PCBAs move continuously through washing, DI-water rinsing and drying sections.
The technical specification lists a maximum product size of W500 × L400 × H80 mm and a maximum product weight of 10 kg.
Yes. The specified DI-water consumption is 5–10 L/min, with an inlet requirement of 1.0 m³/h. The stated water-quality requirement is above 15 MΩ.
The PCBA passes through one cold-air stripping stage followed by two hot-air drying stages. Upper and lower air knives can be adjusted for the product profile.
Provide the PCBA dimensions, weight, component layout, flux type, contamination, required throughput, cleanliness target and factory utility conditions. Sample PCBAs are recommended for process testing.
